Overview of the program interface
Co60, Ir192, Se75:
Selection of the active isotope.
Exposure Time:

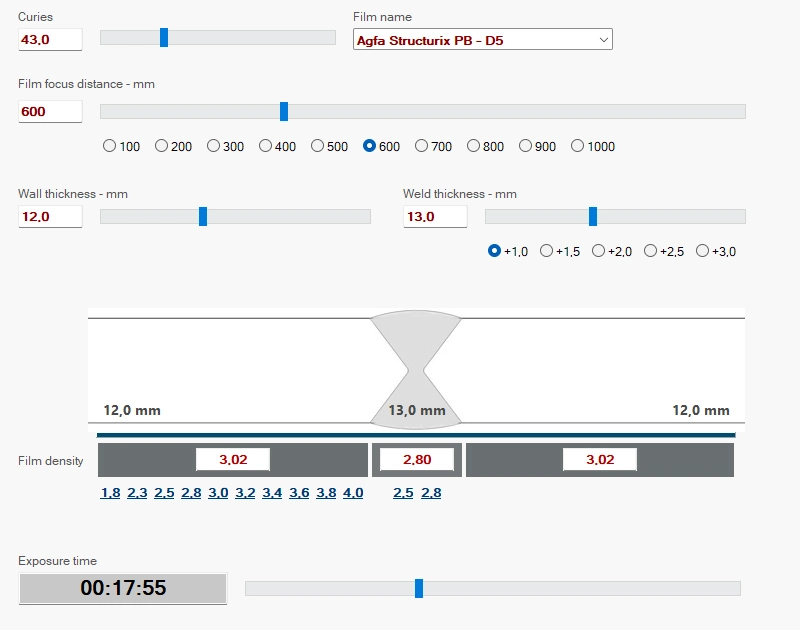

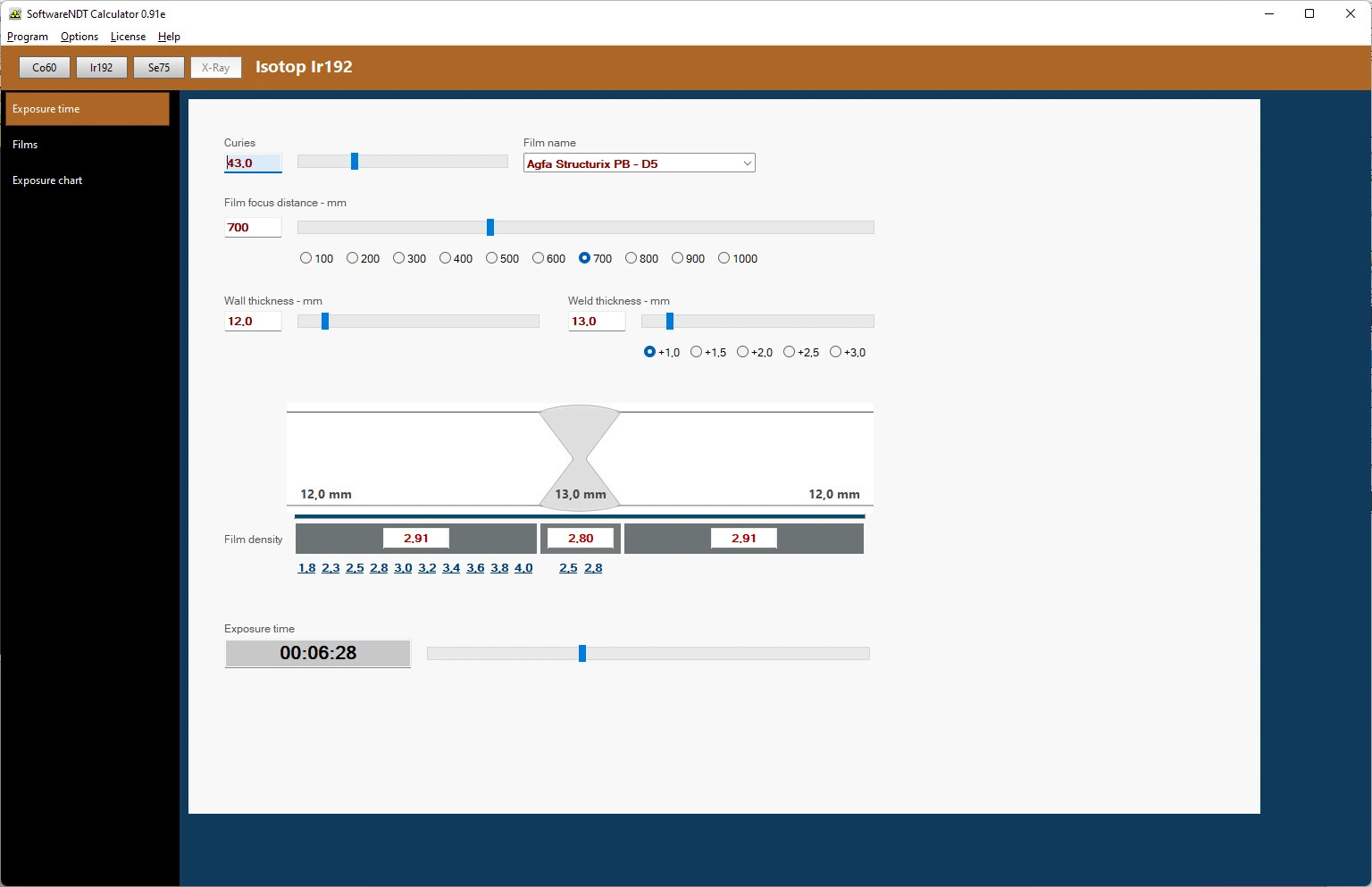

Main window for setting the exposure conditions.
Films:
Settings of the exposure sensitivity of the films.

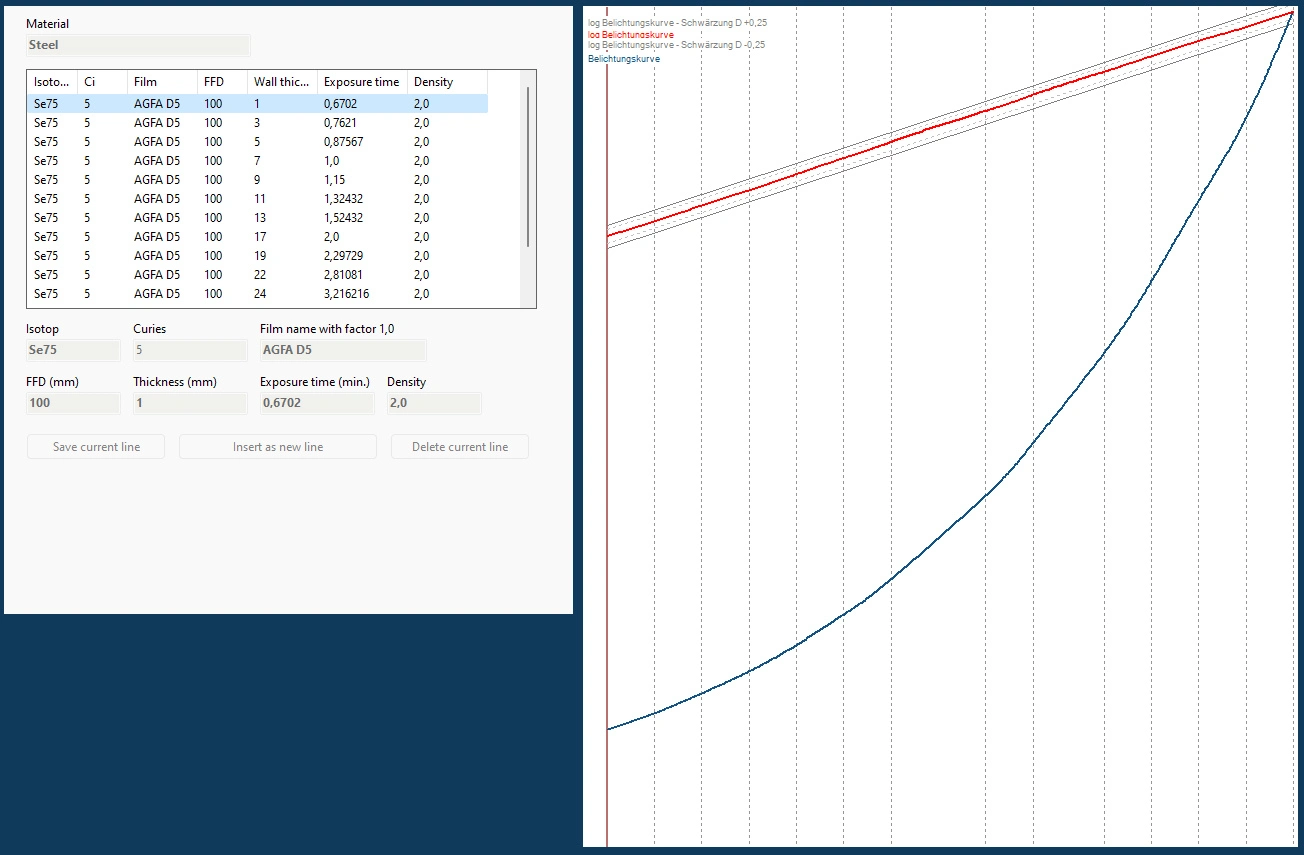

Exposure chart:
View of the exposure curve for the selected isotope.
Exposure time
Curie or GBq:
Activity of the selected isotope.
Film type:
Selection of the film to be used.
Film Focus Distance:
Distance from the radiation source to the film.
Wall thickness:
Thickness of the weld seam.
Weld thickness:
Thickness of the weld seam.
Film density:
Selection of the film density in the base material or in the weld.
Exposure Time:
Calculated exposure time for the selected exposure conditions.

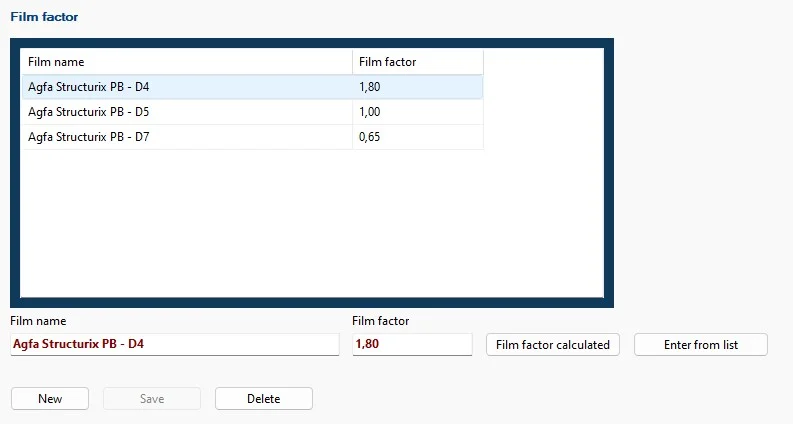

Film factor
Film name:
Film name of the selected film.
Film factor:
Film factor with respect to the film with a film factor of 1.0. The film with a film factor of 1.0 is the film in the exposure diagram.

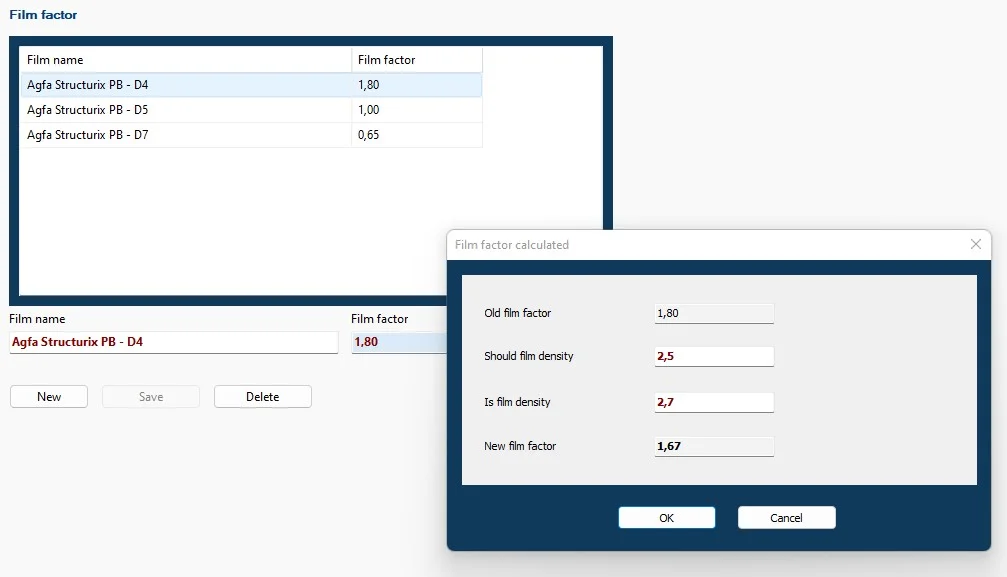

Calculated film factor
Old film factor:
Current film factor of the selected film.
Should film density:
Calculated film density.
Is film density:
Measured density of the film.
New Film Factor:
Calculated new film factor for the currently selected film. Click “Apply” to apply the film factor.
Exposure Diagram
The exposure diagram cannot be changed for the isotopes.
