Calculator for exposure time during radiographic testing
Understanding Exposure Time
What is Exposure Time?
Exposure time in radiographic testing refers to the duration during which the radiation source is active and directed towards the material being tested. It is a critical parameter that influences the quality of the resulting radiograph. Adequate exposure time ensures that enough radiation penetrates the material to produce a clear and interpretable image. If the exposure time is too short, the image may be underexposed, obscuring vital details. Conversely, excessive exposure can lead to overexposure, resulting in an unusable radiograph.
Determining the appropriate exposure time is a balancing act that involves understanding the specific characteristics of the material being tested, the type of radiation used, and the sensitivity of the film or digital detector involved. An effective radiographic test relies heavily on this measurement, making it imperative for technicians to have a comprehensive grasp of the factors at play.
Factors Influencing Exposure Time
Several factors influence the exposure time during radiographic testing. These include the type and thickness of the material being examined, the intensity of the radiation source, the energy of the radiation and the sensitivity of the film used. Understanding these variables is crucial for achieving accurate and reliable results in radiographic inspections.

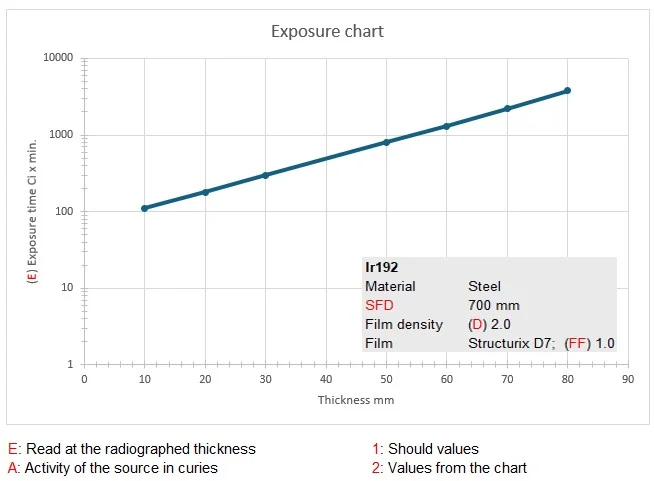

Calculating the exposure time
Formula
Overview of the SoftwareNDT Calculator Program
The SoftwareNDT Calculator is a specialized tool designed to assist radiographic testing professionals in determining the appropriate exposure times for various materials and isotopes. This software streamlines the testing process by providing quick, accurate calculations based on user input, thereby reducing the potential for human error and ensuring consistent results.
The SoftwareNDT Calculator supports several key isotopes commonly used in radiographic testing, including Selenium-75, Iridium-192, and Cobalt-60. Each of these isotopes has unique properties that affect the exposure time calculations.
Selenium-75:
This isotope is widely used for its gamma radiation, which is suitable for various applications, including industrial radiography. Its relatively low energy levels make it less penetrating than other isotopes.
Software area for Selenium 75: Wall thickness: 2 to 42 mm
Iridium-192:
Known for its high energy output, Iridium-192 is ideal for thicker materials and is commonly used in the oil and gas industries. Its effectiveness necessitates careful attention to exposure time to avoid overexposure.
Software area for Iridium-192: Wall thickness: 2 to 150 mm

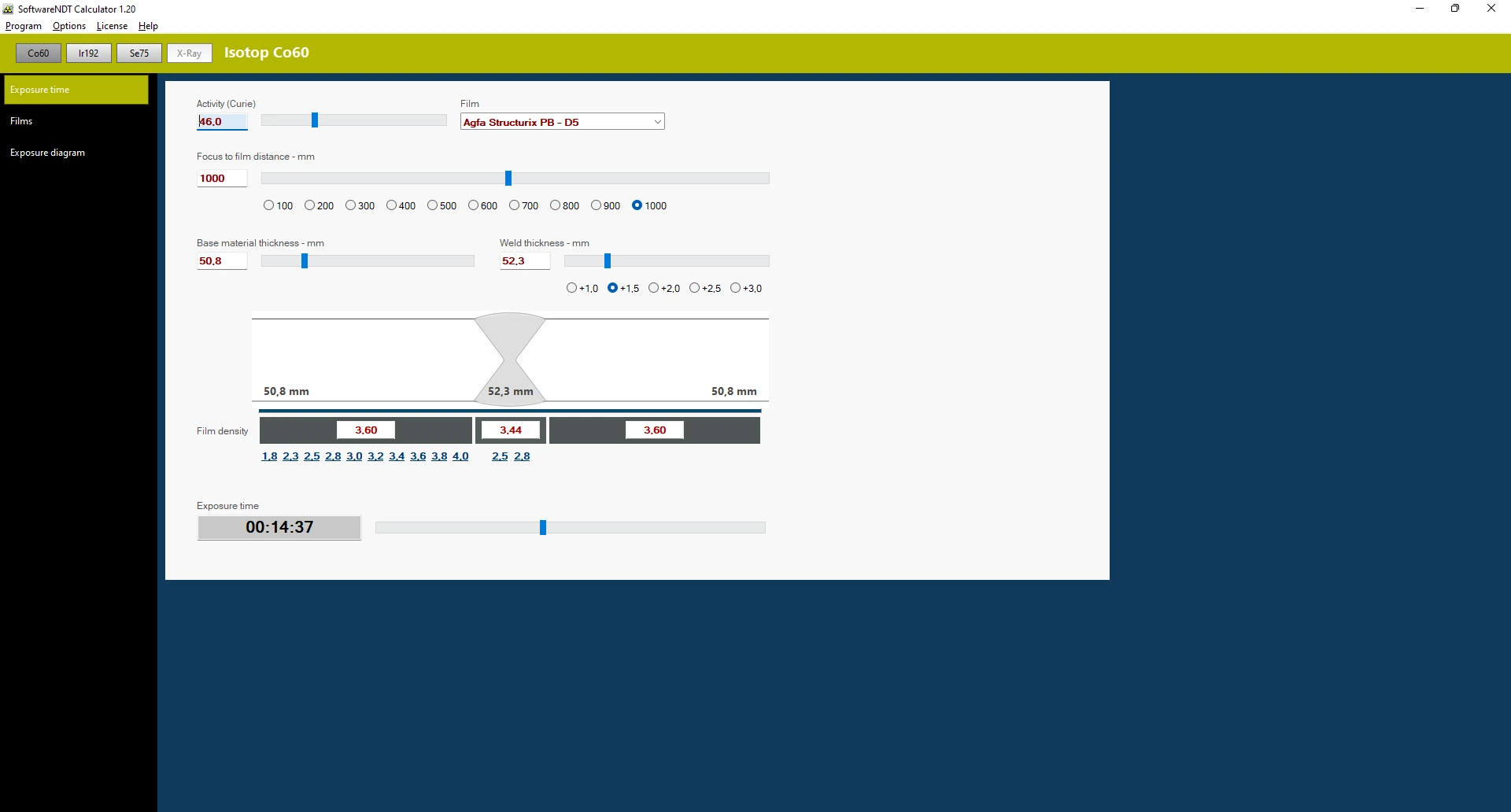

Cobalt-60:
This isotope provides a strong gamma source and is used in a range of applications. It is vital to consider its longer half-life when determining exposure times for effective imaging.
Software area for Cobalt-60: Wall thickness: 15 to 200 mm

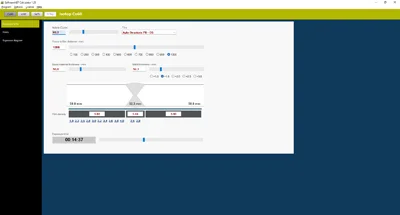

1: Enter the activity and film type.
2: Enter focus to film distance.
3: Enter the thickness of the base materials and the weld seam.
4: Select the film density in the base material or in the weld seam. Or enter the target film density.
The exposure time is displayed.
Download our free program for calculating exposure time during radiographic testing!
Download Size: 3.4 MB
